  • Active RFID Reader with WiFi - DL9230W
Active RFID Reader with WiFi - DL9230W
Active RFID Reader with WiFi - DL9230W Active Reader with WiFi WiFi Active Reader
  • Product Name:
  • Active RFID Reader with WiFi - DL9230W
  • Product Number:
  • Active RFID Reader with WiFi - DL9230W
  •  Product Details:

    This Active RFID Reader with WiFi - DL9230W is designed for inventory management. With long reading range of up to 100m, this WiFi Active RFID reader is widely used in enterprise supply chain management, asset and personnel tracking applications to improve the efficiency of inventory tracking and management.

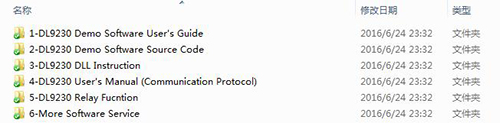

    SDK For DL9230


    Important Performance

    Working Frequency

    ISM 2.4GHz ~ 2.5GHz

    Identify Direction

    Semi-omnidirectional

    Antenna

    15dBi Built-in antenna

    Polarization

    Vertical Polarization

    RF Power Range

    -30 dBm ~ 0 dBm (set by software)

    Receiving Sensitivity

    -90dBm (set by software)

    Modulation

    GFSK

    Read Performance

    Read Mode

    1) Automatic identifying within effective area (Auto mode)

    2) Reading after external trigger (Trigger mode)

    3) Reading under software command (Master-slave mode)

    Anti-collision

    Read up to 200 pieces of tags simultaneously

    Read Distance

    0 ~ 100 m adjustable

    Working Status Indication

    Buzzer

    Communication Performance

    Communication Speed

    1000kbps

    Data Port Interface

    Port Available

    TCP/IP (RJ45) / USB / RS232 / RS485 / Weigand26 / Weigand34/ WiFi (Integrated)

    Electric Parameter

    Power Supply

    DC+9V ~ +15V, 1A

    Exterior and Weight

    Dimension

    320 mm*200 mm*100 mm

    Weight

    2.5kg

    Accessories

    12V/1A adapter, Mounting bracket

    Working Environment

    International Protection

    IP65

    Working Temperature

    -20°C ~ 70°C

    Storage Temperature

    -40°C ~ 85°C
