  • Long Range HF Handheld Reader / Writer DL730Plus
Long Range HF Handheld Reader DL730Plus_1
  • Long Range HF Handheld Reader DL730Plus_1
  • Long Range HF Handheld Reader DL730Plus_2
  • Long Range HF Handheld Reader DL730Plus_3
  • Long Range HF Handheld Reader DL730Plus_4
Long Range HF Handheld Reader DL730Plus_1 Long Range HF Handheld Reader DL730Plus_2 Long Range HF Handheld Reader DL730Plus_3 Long Range HF Handheld Reader DL730Plus_4
  • Product Name:
  • Long Range HF Handheld Reader / Writer DL730Plus
  • Product Number:
  • Long Range HF Handheld Reader DL730Plus
  •  Product Details:


    RFID
    Type  Long Range HF Handheld Reader / Writer DL730Plus
    Operating Frequency  HF(High Frequency) - 13.56MHz
    Protocol  ISO15693 ( Other on request)

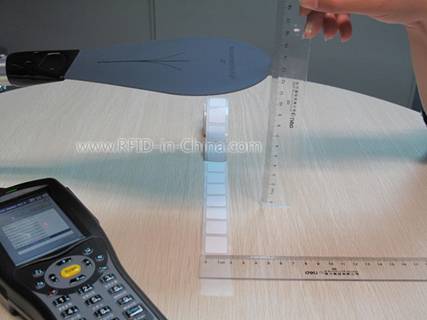

    Reading Range

     2 ~ 40cm ( tag and environment dependent)

    Antenna  Integrated
    SDK  Free SDK provided attached to the Reader
    System features
    Operating system  Microsoft® Windows CE® 5.0 Professional
    Processor  Samsung Processor 400MHz
    Memory
    Memory  128 MB SDRAM
    Flash memory  128 MB Flash ROM
    Audio, Slots, and Ports
    USB Ports  1 USB Interface
    Slots  1 TF Slot
    Input/Output devices
    Input devices  QWERTY keyboard,Touch screen, stylus, Trigger Button
    Output devices  3.5” Transmissive LCD, 320 x 240 pixels, LED x 2,Buzzer
    Communication features
    WiFi  802.11b/g
    GPRS (GSM)  Integrated
    Product specifications
    Dimensions   186 x 75 x 31 mm (w x d x h)
    Weight  400g
    Energy Efficiency
    Battery  Removable, rechargeable 4400 mAh battery
    Power supply  AC Adapter
    Environment Requirement
    International Protection  IP64
    Operating Temp  -20°C to 50°C (-4°F to 122°F)
    Storage Temp  -40°C to 75°C (-40°F to 167°F)
    Humidity  5% to 95% Non-condensing

    We can design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirements.For more info about RFID products please kindly visit our website www.rfid-in-china.com or mail to us at rfid8168@vip.163.com or 1618@vip.163.com , our sales will contact you as soon as possible.
