  • DAILY RFID Released the New Wiegand Rfid Reader With Reasonal Price

By DAILY RFID - Cathy

Dec. 23rd, 2017



In general, RFID readers have two output formats containing RS232 output and Wiegand output format. And Wiegand RFID Reader , as its name suggests, is a radio frequency identification reader with Wiegand interface and compliant with Wiegand communication protocols that are established by Motorola. Numerous practice has shown this standard is very appropriate for access control RFID readers and cards, so Wiegand RFID Reader has been widely used into access management applications since published. And as the leading professional RFID technology products developer and manufacturer, DAILY RFID has newly launched a series of Wiegand RFID Readers with high quality and excellent performance in automated access control fields, for example in parking control.

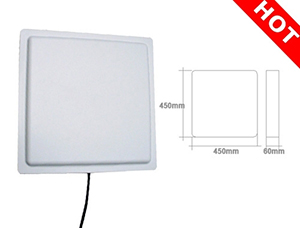

Taking UHF long range reader DL920 for instance, this Wiegand RFID reader has the working frequency of ISM 902MHz ~ 928MHz or 920MHz ~ 925MHz, and it is compatible with ISO 18000-6CEPC Gen2 protocols & ISO 18000-6B standards. According to the software setting, this Wiegand RFID Reader has the transmit power of 20dBm ~ 30dBm and the working mode of FHSS or fixed frequency pulse transmitting. Moreover, depending on RFID tags and environments, Wiegand RFID reader DL920 has the reading distance ranging from8mto15mat the average read speed of less than 10ms per 64 bits. At the same time, its writing speed is up to 8bits less than 30ms and its writing distance ranges from 4 meters to 7 meters. In addition, this Wiegand RFID reader also has other interfaces, including USB port, RS232 port, RS485 port, Trigger port and TCP/IP port (RJ45), which makes it quite easy to use and convenient to connect with other devices.

With simple structure, Wiegand RFID Reader DL920 is convenient to install and can be directly hung on the wall or holder. More importantly, its long reading range can be utilized into a variety of applications, such as staff attendance, vehicle management, automated product line, parking control and other wireless RFID application solutions. For instance, Wiegand RFID reader plays a crucial role in intelligent parking control system. In other words, when cars attached with RFID windshield tags pass through RFID parking lot, long range RFID readers can automatically identify, collect, record and monitor the cars’ data without any human intervention, which ensures the efficient parking management.


About DAILY RFID CO., LIMITED

DAILY RFID CO., LIMITED (http://www.RFID-in-China.com), which belongs to PAN Group Co., Ltd, is the leading company focusing on the research and development of EPC & RFID technology, such as Wiegand Rfid Reader with low price inChina.

DAILY specializes in producing arguably the world’s most extensive line of low cost Wiegand Rfid Reader, which is suitable for any vertical markets, and has obtained the National Integrated Circuit Card Register Certificate, IC Card Manufacture License and ISO9001 Quality Management System Certification. Also, we own a factory covering an area of 26,000 square meters.

Daily’s Wiegand Rfid Reader is designed and manufactured with recognized industry standards relevant to RFID and its markets but most notably for use in the demanding environments to recognize and understand your business’s RFID and NFC needs.
