  • Wireless Bluetooth UHF RFID Reader

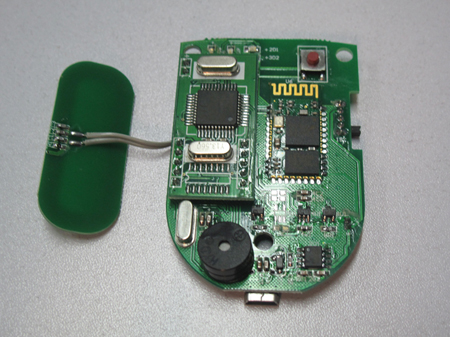

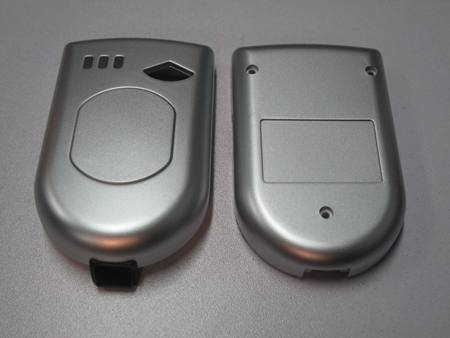

Wireless Bluetooth UHF RFID Reader-01
Wireless Bluetooth UHF RFID Reader-01 Wireless Bluetooth UHF RFID Reader-02
  • Product Name:
  • Wireless Bluetooth UHF RFID Reader
  • Product Number:
  • Wireless Bluetooth UHF RFID Reader
  •  Product Details:

    Features

    1)1) Wireless data transferring via the Bluetooth connection

    2)2) Can work with WinCE 5.0 or Windows Mobile 5.0/6.0 based SmartPhones or PDAs (Bluetooth featured).

    3)3) Palm sized

    4)4) Long battery life - continuously reads tags for up to 6000 times per charge

    5)5) Free SDK provided

    6)6) Excel/Word/Notepad keyboard wedge, data can be automatically updated and viewed in the real-time mode through any kind of text editors on PCs or PDAs

         SDK For DL990U


    Specification

    Frequency:

     860MHz~960MHz

    Reading Distance:

     20 CM ( Tags dependent )

    Size:

     82 mm x 52.3 mm x 25.8 mm

     Weight:

     <98 g

     Communication Interface:

     Wireless Bluetooth; USB

     Antenna Connection:

     Built-in

     Transponder Compatibility:

    ISO18000-6C EPC Gen2

     Bluetooth Transmission Range:

     >10 M

     Reading Time:

     0.1 S

     Power Consumption:

     < 0.8 W

     Operating Voltage:

     DC 3.7 to 4.2 V

     Bluetooth Standard:

     Class Four

     Communication Baud Rate:

     9600 bps

     Re-chargeable Lithium Battery:

     950mAh, DC3.7V

     Humidity:

     5% to 90% relative

     Operating Temperature:

     -20°C to 65°C

     Storage Temperature:

     -25°C to 85°C
