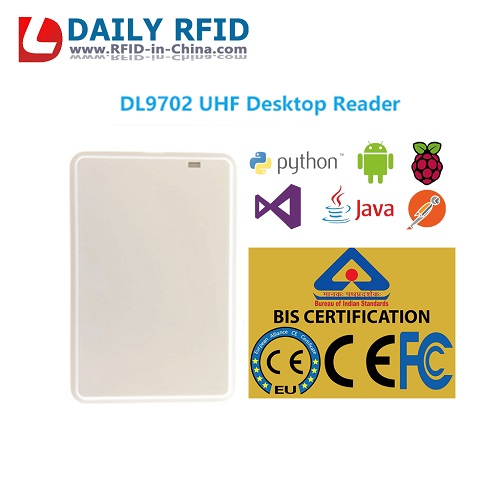

dl9702

Important performance
Support protocol	ISO18000-6CEPC Gen2 / ISO18000-6B
Working frequency	ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz
Customization	860MHz ~ 960MHz
Working mode	FHSS or working mode of fixed frequency pulse transmitting set by software
Transmit power	18dBm
Read-Write performance
Read speed	The average read time for single card is less than 10ms per 64 bits
Read distance	10cm ~15cm(tag and environment dependent)
Write speed	8bits less than 30ms
Write distance	10cm ~15cm(tag and environment dependent)
Read prompt	Buzzer
Data Port interface
USB Port	Yes
Electric parameter
Power supply	USB Powered
Power consumption	0.25W
Exterior and weight
Dimension	105mm*70mm, thickness:10mm
Weight	56g
Working environment
Working temperature	-30°C～70°C

We can design and develop RFID tags and RFID readers in different sizes and different
shapes for your different requirements. For more info about RFID products please kindly
visit our website www.rfid-in-china.com or mail to us at rfid8168@vip.163.com or
1618@vip.163.com ,our sales will contact you as soon as possible.wwpDvKtbrooW3PQkiF47.png (500×414)
