  • RFID Label On-Metal Surface

RFID Label On-Metal Surface-1
  • RFID Label On-Metal Surface-1
  • RFID Label On-Metal Surface-2
  • RFID Label On-Metal Surface-3
RFID Label On-Metal Surface-1 RFID Label On-Metal Surface-2 RFID Label On-Metal Surface-3
  • Product Name:
  • RFID Label On-Metal Surface
  • Product Number:
  •  Product Details:


    Description

    LF and HF RFID Label On-Metal Surface is specially developed for the Metal items and Mobile Phone, Computer tracking. It can be printed with the logo as well as the UID number. It is able to be encoded and programmed with the RFID Reader and Writer. It is available with 3M glue on the back side and can be direct used on the metal surface. This RFID metal tag is also available for customization and OEM.



    Specification

    ● Type: Contactless R/O or R/W

     Operating Frequency: LF(125KHz) or HF (13.56MHz)

     IC Available at 13.56MHz

    HF: I-CODE (ISO 15693-3), Mifare 1K Classic (Mifare 1K S50), Mifare 1K EV1, Mifare 4K S70, Mifare 4K EV1, Mifare S20, Mifare Ultralight, Mifare Ultralight EV1, Ultralight C, Mifare DesFire 2K / 4K / 8K, Mifare plus 2K / 4K / 8K, Tag-it™ HF-I (ISO 15693-3), SmartMX, others upon request

    NFC: NTag210, NTag213, NTag215, Ultralight ULT EV1, Ultralight-C, NTag216, NTag203, Sony FeliCa Lite-S, ST25TA02K, others upon request

     IC Available at LF: EM4200, EM4100, EM4102, EM4305, EM4001, T5577, Hitag1, Hitag2, Hitag S, Hitag-u Advanced, TK4100, GK4100, others upon request

     Size: 38*38mm, Thickness:0.8mm

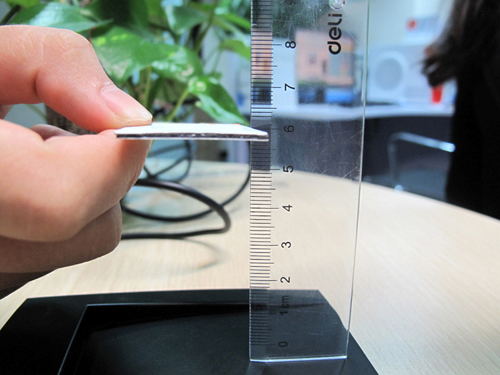

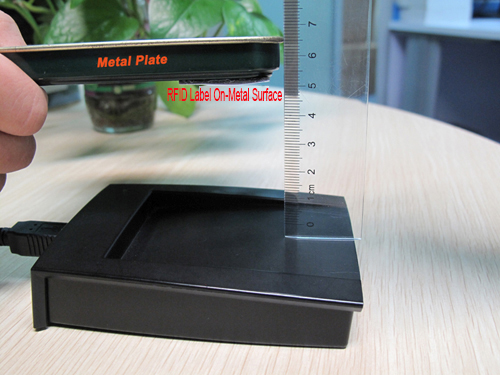

     Reading Distance: 1~10cm

     Material: Epoxy / Special Magnetic Material / 3M® Glue

     Operating Temperature: -40º C to +80º C

     Storage Temperature: -40º C to +100º C



    Competitive Advantage

    1. Label type with 0.8mm thickness

    2. Customized size available as requested

    3. 100, 000 times reading & writing

    4. Excellent read/write performance on any metal surface

    5. Exceptional temperature and harsh environmental performance

    6. Encoding available



    DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website www.rfid-in-china.com or email us at info@rfid-in-china.com or rfid8168@vip.163.com , we will contact you as soon as possible.



    Remark:

    1. Specifications are subject to change, please pay attention to our latest one.

    2. DAILY RFID reserve the right to the final interpretation of the above terms.
